Using Rear Window

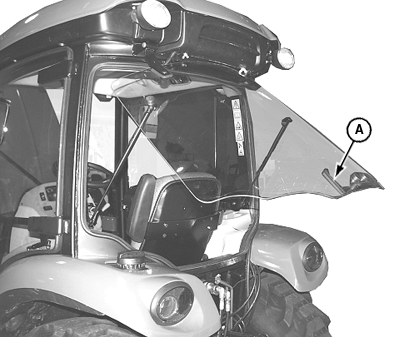

LV17730-UN-09MAY13

A - Latch

Opening and Closing Rear Window

IMPORTANT: Avoid damage! Check to be sure 3-point hitch arms and attached rear implements are out of the way before opening the rear window.

Release latch (A) on inside of rear window and push window out to open. Pull window shut to close and secure latch.

Emergency Exit

Exit through rear window if cab doors are blocked in an emergency.
