Operator Station Controls—OOS

LV17492-UN-23MAY13

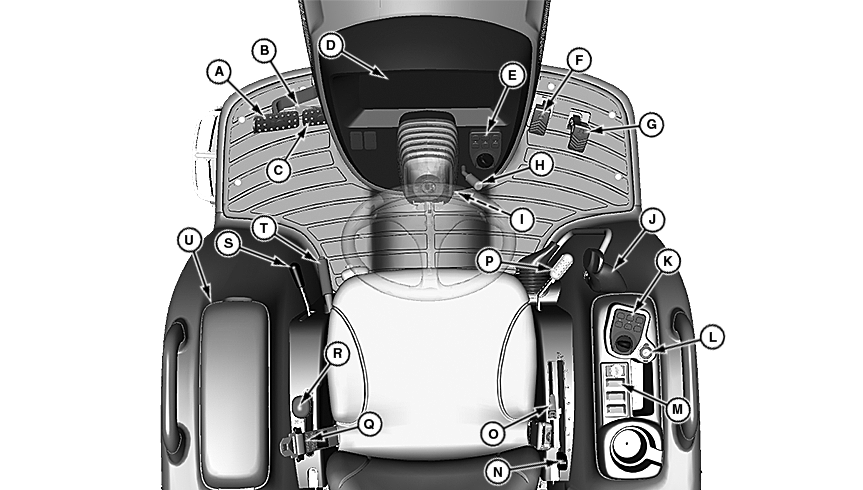

Open Operator Station Controls

A - Left Turn Brake Pedal

B - Brake Pedal Lock

C - Right Turn Brake Pedal

D - Instrument Cluster

E - Dash Panel Module

F - Forward Travel Pedal

G - Reverse Travel Pedal

H - Engine Speed Hand Throttle

I - Ignition Key Switch

J - Dual Selective Control Valve (SCV) Lever

K - Cruise Control Module

L - Aux Port

M - PTO Engagement Switch

N - Rockshaft Control Lever

O - Rockshaft Depth Stop

P - PTO Select Lever

Q - Seat Belt

R - Transmission Range Shift Lever

S - Mechanical Front Wheel Drive (MFWD) Lever

T - Park Brake Lever

U - Operator’s Manual Holder
