Operator Station Controls—Cab

LV17721-UN-14MAY13

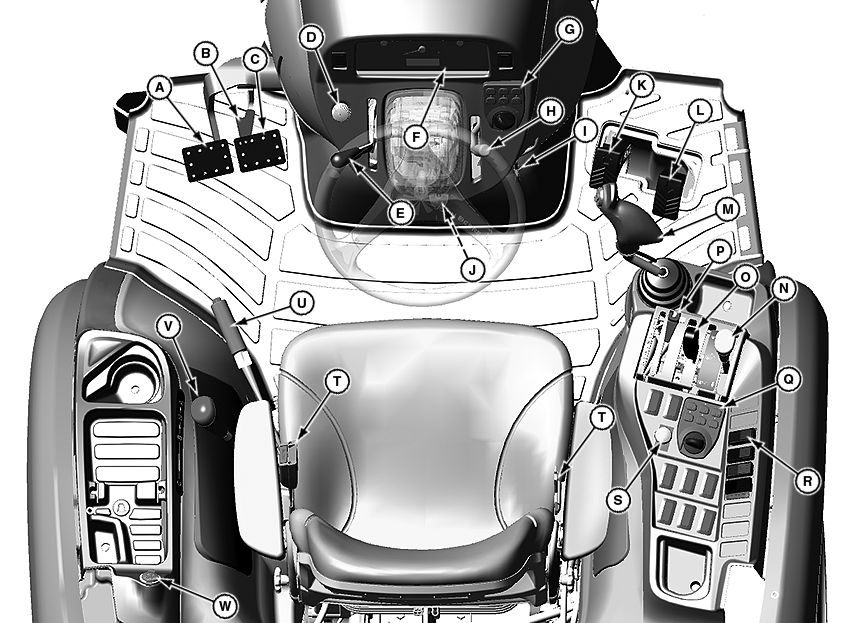

Cab Controls

A - Left Turn Brake Pedal

B - Brake Pedal Lock

C - Right Turn Brake Pedal

D - Wiper Knob

E - Mechanical Front Wheel Drive (MFWD) Lever

F - Instrument Cluster

G - Dash Panel Module

H - Engine Speed Hand Throttle

I - Ignition Key Switch

J - Tilt Lever

K - Forward Travel Pedal

L - Reverse Travel Pedal

M - Dual Selective Control Valve (SCV) Lever

N - PTO Selector Lever

O - Rockshaft Control Lever

P - Rockshaft Depth Stop

Q - Cruise Control Module

R - Rear Outlet Activation Switch

S - PTO Engagement Switch

T - Seat Belt

U - Park Brake Lever

V - Transmission Range Shift Lever

W - Aux Port
