Record Identification Numbers

Compact Utility Tractor

3033R PIN (010001 -)

3039R PIN (010001 -)

3046R PIN (010001 -)

If you need to contact an Authorized Service Center for information on servicing, always provide the product model and identification numbers.

You will need to locate the identification numbers for the product. Record the information in the spaces provided below.

DATE OF PURCHASE:

_________________________________________

DEALER NAME:

_________________________________________

DEALER PHONE:

_________________________________________

LV18564-UN-02AUG13

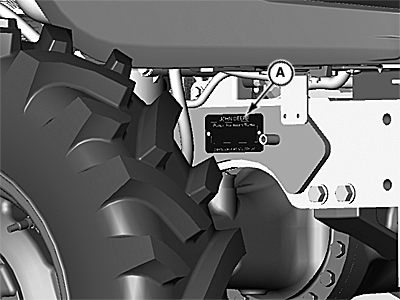

PRODUCT IDENTIFICATION NUMBER (A):

__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __

LV18565-UN-05AUG13

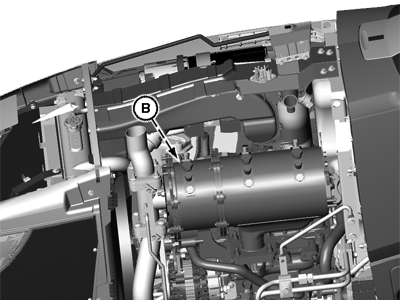

ENGINE SERIAL NUMBER (B):

__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __

ROPS Certificate

LV18566-UN-22OCT13

LV18567-UN-02AUG13

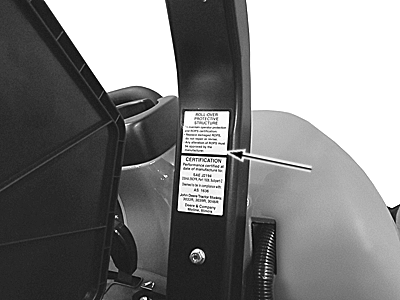

Right-Hand Side

ROLL- OVER PROTECTIVE STRUCTURE

To maintain unimpaired operator protection and manufacturer’s ROPS certification:

•Replace damaged ROPS, do not repair or revise.

•Any alteration of ROPS must be approved by the manufacturer.

CERTIFICATION

Performance certified at date of manufacture to:

SAE J2194

OSHA 29CFR, Part 1928, Subpart C

Deemed to be in compliance with: AS 1636

John Deere Tractor Models: 3033R, 3039R, 3046R

Deere & Company Moline, Illinois

LV20985-UN-05FEB14

LV18901-UN-05FEB14

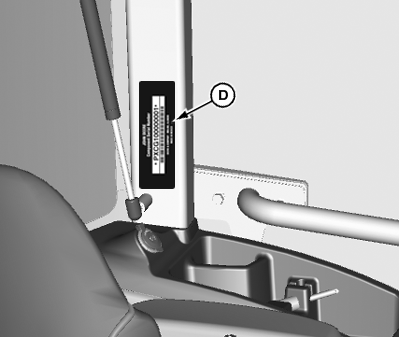

ROPS SERIAL NUMBER CAB (D):

__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
