Engine Oil

TS1691-UN-18JUL07

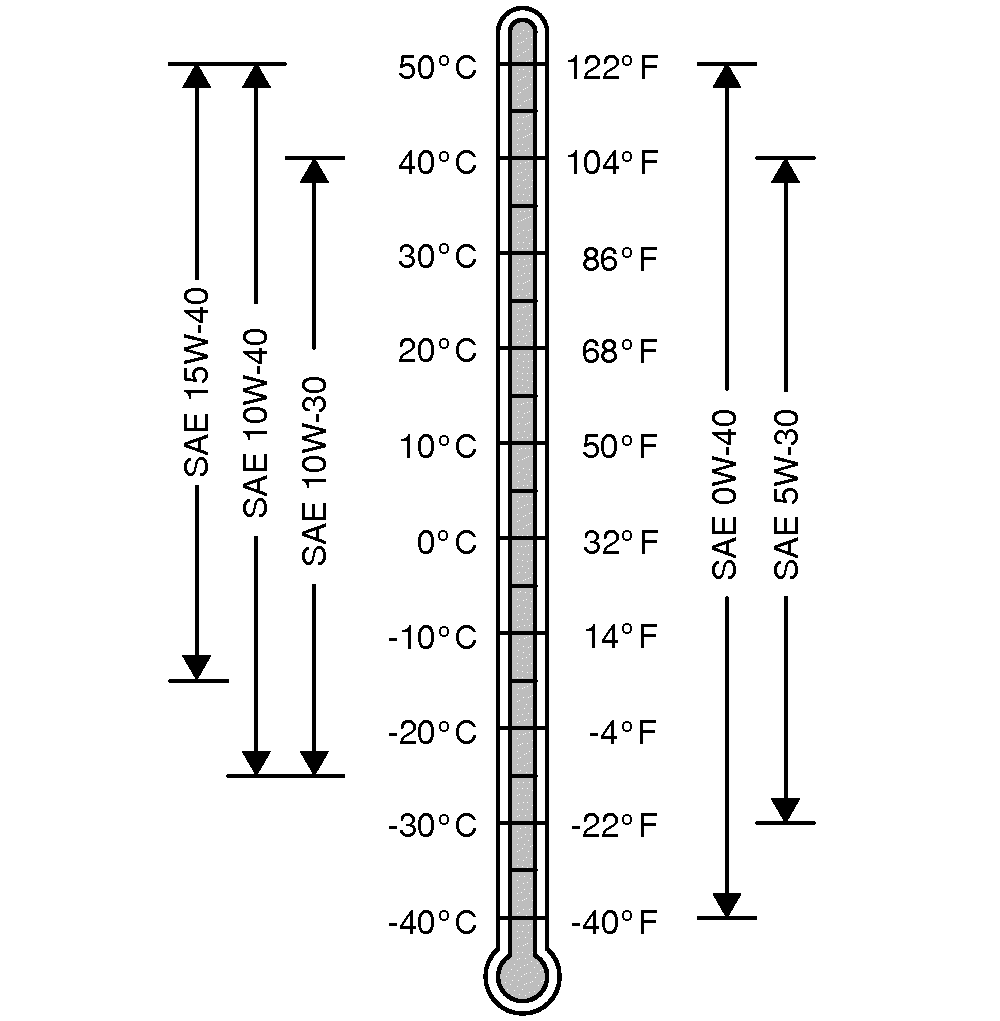

Oil Viscosities for Air Temperature Ranges

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following John Deere oils are preferred:

• PLUS-50™ II
• TORQ-GARD SUPREME™

Other oils may be used if above John Deere oils are not available, provided they meet the following specification:

• API Service Classification CJ-4
• ACEA Specification E6 or E9
• JASO Specification DH-2

Diesel fuel quality and fuel sulfur content must comply with all existing emissions regulations for the area in which the engine operates.
