Using Fuel Shutoff Valve

CAUTION: Avoid injury! Close fuel shutoff valve when performing any type of engine service, during transport of the machine, and during storage.

Locate fuel shutoff valve on the right side of machine on fuel sediment filter.

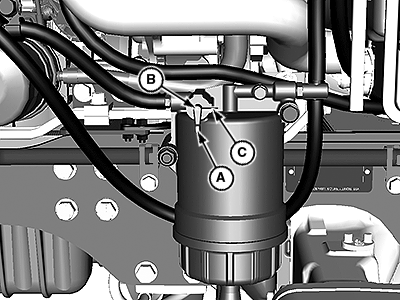

LV17528
LV17528-UN-19APR13

A - Fuel Shutoff Valve Lever

B - Vertical Position

C - Horizontal Postion

Open or close fuel shutoff valve lever (A) as required:

  • Open Valve: Rotate valve lever pointer to the vertical position (B).
  • Close Valve: Rotate valve lever pointer to the horizontal position (C).
