Raising and Lowering Roll-Over Protective Structure (ROPS)

CAUTION: Avoid injury! Always wear seat belt when operating machine with folding roll-over protective structure (ROPS) in upright position. Do not jump from machine if machine tips.

If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.

CAUTION: If canopy or sunshade is attached to the ROPS structure, the weight MUST be limited to 45 kg (100 lb.) or less.

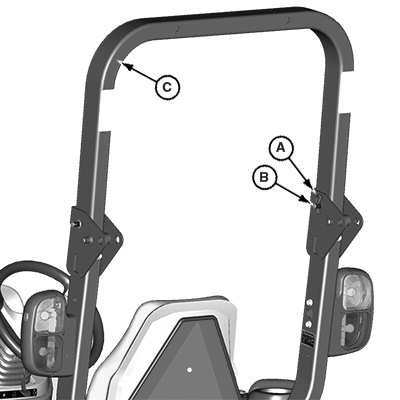

LV17701-UN-06MAY13

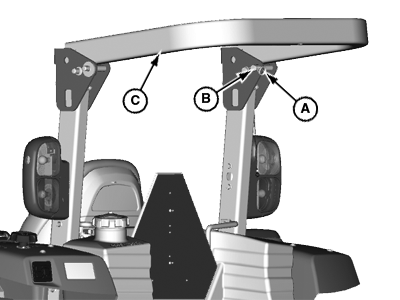

LV19442-UN-22OCT13

A - Spring Locking Pin

B - Drilled Pin

C - ROPS Crossbar

Lowering ROPS Crossbar

1. Remove spring locking pin (A) and drilled pin (B) on each side of the ROPS.

2. Carefully lower ROPS crossbar (C) until holes are exposed enough to insert drilled pins (B).

3. Install drilled pins (B) and spring locking pins (A) and lower crossbar (C) onto drilled pins (B).

Raising ROPS Crossbar

1. Raise the crossbar just enough to remove spring locking pins (A) and drilled pins (B) on each side of the ROPS.

2. Carefully raise ROPS crossbar (C) to the operating position.

3. Align crossbar bracket holes with support bracket holes on each side of the ROPS.

4. Install drilled pins (B) and spring locking pins (A) to lock crossbar (C) in the raised position.
