Checking Radiator Hoses and Clamps

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Raise hood.

3. Remove right and left side panels.

4. NOTE: Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, or soft or swollen.


   LV17620-UN-01MAY13


   LV17621-UN-03MAY13

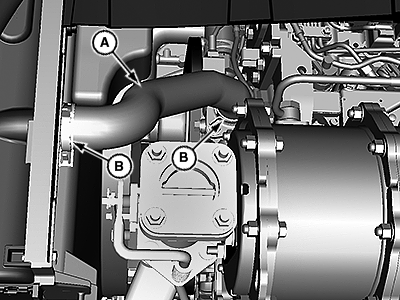

   A - Upper Radiator Hose

   B - Hose Clamps

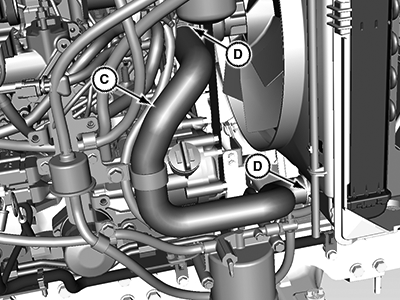

   C - Lower Radiator Hose

   D - Hose Clamps

   Check upper radiator hose (A) for damage or cracking. Replace if necessary.

---




5. Check hose clamps (B) as needed.

6. Check lower radiator hose (C) for damage or cracking. Replace if necessary.

7. Check hose clamps (D) as needed.

8. Install right and left side panels.

9. Lower hood.
