Raising and Lowering Hood

Raising

1. Park machine safely. (See Parking Safely in the Safety section.)

2.

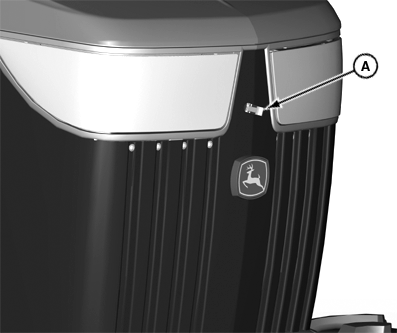

   LV21360-UN-14MAR14

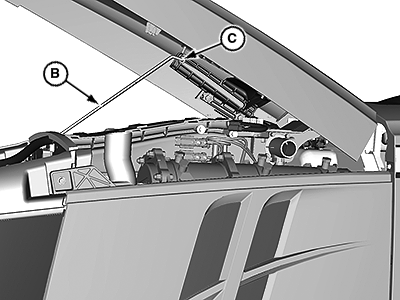

   LV17662-UN-01MAY13

   A - Release Lever

   B - Hood Support Rod

   C - Hood Support Bracket

   Push release lever (A) sideways to open hood.

---




3. Raise hood until hood support rod (B) engages hood support bracket detent (C).

Lowering

1. Lift hood slightly to remove weight from hood support bracket.

2. Push hood support rod (B) toward the rear of the machine to release and slowly lower hood.

3. Gently push down on both sides of front of hood to lock latch.
