Lubricating Axle Trunnion

LV19181
LV19181-UN-26SEP13

LV19182
LV19182-UN-26SEP13

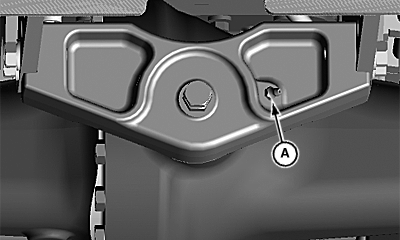

A - Front Trunnion Grease Fitting

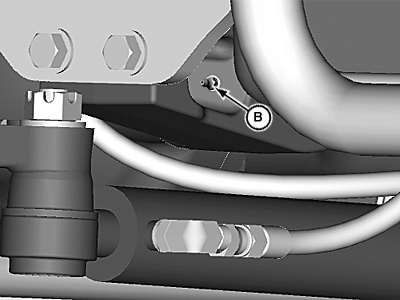

B - Rear Trunnion Grease Fitting

  • Lubricate front trunnion grease fitting (A) and rear trunnion grease fitting (B) with SUPER LUBE® lubricant.1

1 SUPER LUBE is a registered trademark of Synco Chemical Corp.

KN52281,10049F3-19-20131004
