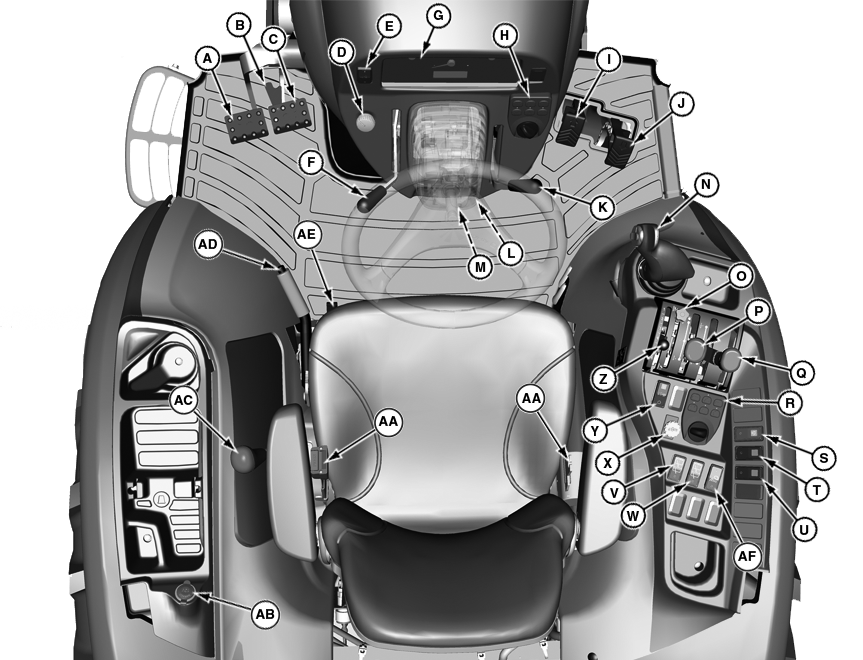

Cab—Operator Station Controls

LV18537-UN-15OCT13

All Controls Shown May Not Be Installed on Your Machine

A - Left Turn Brake Pedal

B - Brake Pedal Lock

C - Right Turn Brake Pedal

D - Wiper Knob

E - Hitch Assist Enable Switch

F - Mechanical Front Wheel Drive (MFWD) Lever

G - Instrument Cluster

H - Control Module

I - Forward Travel Pedal

J - Reverse Travel Pedal

K - Hand Throttle

L - Key Switch

M - Tilt Steering Control Lever

N - Dual Selective Control Valve (SCV) Lever

O - Rockshaft Depth Stop

P - 4th SCV Lever

Q - 5th SCV Lever

R - Cruise Control Module

S - 5th Valve Continuous Flow Switch

T - 3rd SCV Continuous Flow Switch

U - IV and V Rear Outlet Activation Switches

V - Rear Work Lights Switch

W - Rear Wiper Switch

X - PTO Engagement Switch

Y - Rear Diverter/Rockshaft Switch

Z - Rockshaft Control Knob

AA - Seat Belt

AB - Power Port

AC - Transmission Range Shift Lever

AD - Park Brake Lever

AE - Differential Lock Lever

AF - Beacon Lamp Switch
