Checking and Cleaning Fuel Filter Sediment Bowl and Replacing Filter

CAUTION: Avoid injury! Fuel vapors are explosive and flammable:

• Do not smoke while handling fuel.
• Keep fuel away from flames or sparks.
• Shut off engine before servicing.
• Cool engine before servicing.
• Work in a well-ventilated area.
• Clean up spilled fuel immediately.

NOTE: Change filter when fuel level is low.

Checking Sediment Bowl

1. Park machine safely. (See Parking Safely in the Safety section.) Allow engine to cool.

2. Check fuel sediment bowl. If water and deposits are detected, remove bowl and replace fuel filter.

Cleaning Sediment Bowl and Replacing Fuel Filter

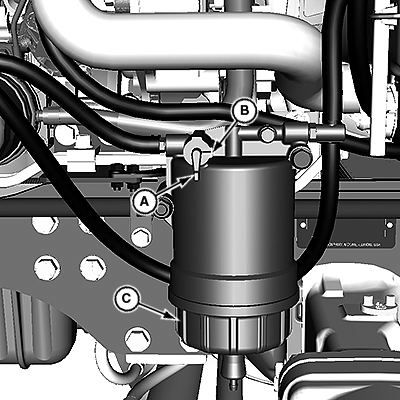

LV17623-UN-01MAY13

A - Fuel Shutoff Valve

B - Closed Position

C - Sediment Bowl

1. Move the fuel shutoff valve (A) to the closed position (B).

2. Position drain pan under fuel filter sediment bowl (C).

3. Turn sediment bowl counterclockwise to remove.

4. Remove and discard the fuel filter.

5. Clean bowl.

6. Install new filter to filter head.

7. Install sediment bowl.

8. Open fuel shutoff valve.

9. NOTE: Fuel system is self-bleeding.

   Turn key to the ON position for 10—15 seconds before attempting to start; electric pump purges air from sediment bowl.

Replacing Inline Fuel Filter

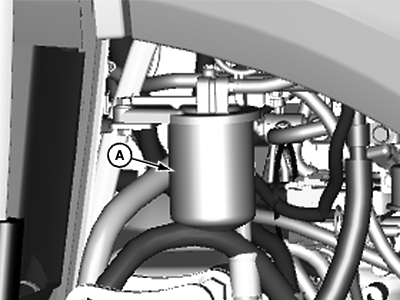

LV17808-UN-16MAY13

Fuel Filter

A - Fuel Filter

NOTE: Change filter when fuel level is low.

1. Remove right side panel.

2. Position drain pan under fuel filter (A).

3. Wipe dirt from around filter.

4. Turn filter counterclockwise to remove.

5. Install replacement filter by turning filter clockwise until gasket contacts filter base. Tighten additional 1/2 turn.

6. Start and run engine at idle to check for leaks.
