Using Power Port Outlet

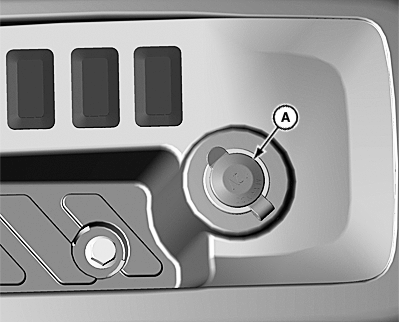

LV20856-UN-03FEB14

Open Operator Station Power Port Outlet

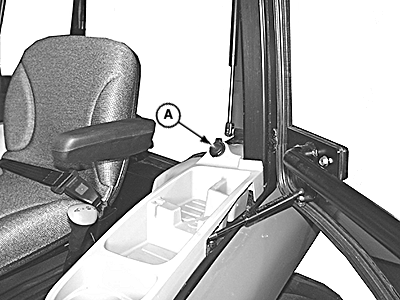

LV18078-UN-11JUN13

Cab Power Port Outlet

A - Power Port Outlet

The 12-volt power port electrical outlet (A) is used when connecting auxiliary equipment.

NOTE: 10A Maximum current.
