Driving Machine—PowrReverser Transmission

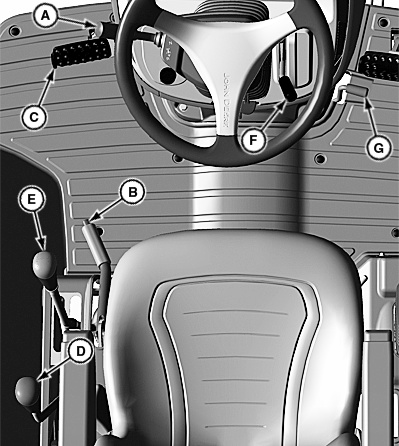

LV20862-UN-03FEB14

A - Reverser Lever

B - Park Brake Lever

C - Clutch Pedal

D - Transmission Range Shift Lever

E - Transmission Gear Shift Lever

F - Hand Throttle

G - Foot Throttle

CAUTION: Avoid injury! Always check area around machine for bystanders and obstacles before operating the machine.

IMPORTANT: Avoid damage! To prevent transmission damage, stop machine motion completely before shifting the transmission range shift lever.

1. Start machine engine.

2. Move reverser lever (A) to N (neutral) position.

3. Unlock park brake lever (B).

4. Depress clutch pedal (C).

5. Choose A, B, or C speed range on transmission range shift lever (D) to match work application.

6. Move the transmission gear shift lever (E) to the desired gear position.

7. Move the reverser lever to the forward or reverse position.

8. Release clutch pedal gradually to take up load smoothly.

9. Continue to shift gears while moving under normal loads:

   • Depress clutch pedal and shift to next gear.
   • Release clutch pedal gradually to take up load smoothly.



10. Adjust throttle speed:

    • To maintain a constant operating speed, adjust the engine speed with the hand throttle (F).
    • To repeatedly increase and decrease engine speed, leave the hand throttle set at the middle position and use the foot throttle (G) to change engine speed.



    CAUTION: Avoid injury! Always check area around machine for bystanders and obstacles before repositioning machine or changing machine direction.

11. To change travel direction:

    • Clutch use is not required.
    • Move the reverser lever to the forward or reverse position.



NOTE: Shuttle Shifting is not permitted at higher speeds. Transmission will default to neutral until a lower ground speed is reached.

Travel Speeds

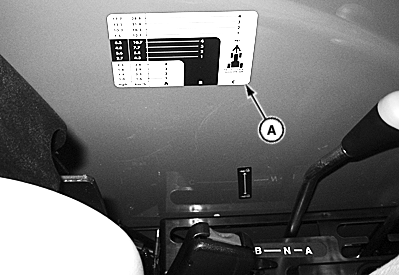

LV20920-UN-04FEB14

A - Travel Speed Label

The travel speed label (A) located on the left fender can be used to determine your travel speed.

If the tire size on your machine is within the range indicated on the label, and you are traveling with the engine speed at the rpm indicated on the label, the approximate travel speed for each range and/or gear is shown.
