Using Torsion Tube—Category 1—If Equipped
LV23650-UN-07JAN15

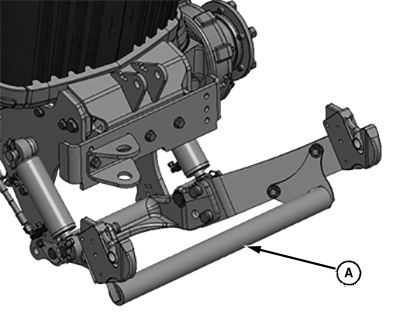

A - Torsion Tube
For heavy push applications, use of torsion tube (A) is recommended. If torsion tube is installed, lift arms must be in fixed position. To use lift arms in float position, torsion tube must be removed.|
UP00731,00002F5-19-20150304 |
