Placing Front Hitch Lift Arms in Storage Position—Category 1—If Equipped

Lift arms maybe placed into a storage position when hitch is not in use. To place lift arms into storage position:

  1. NOTE: Attaching implement to front hitch while lift arms are in storage position may result in damage. Move arms to operating position before attaching implement.

    After implement is removed, raise hitch lift frame to full height.

  2. Lock front hitch into position using lock out valve supplied with hitch.

  3. LV23649

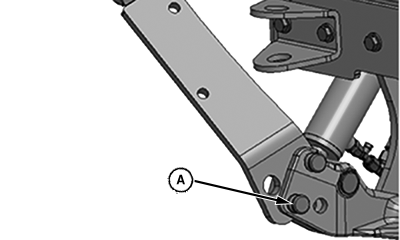

    LV23649-UN-07JAN15

    A - Lift Pin

    Remove lower lift arm pin from lift frame and rotate lift arm. Align rear lift arm hole with forward lift arm hole in lift frame Insert lift pin (A) in forward hole. Repeat for opposite side lift arm.
