Transporting Backhoe

1. Fully raise and center the boom.
2. Fully retract the dipperstick.
3. Curl the bucket back into dipperstick.

4.

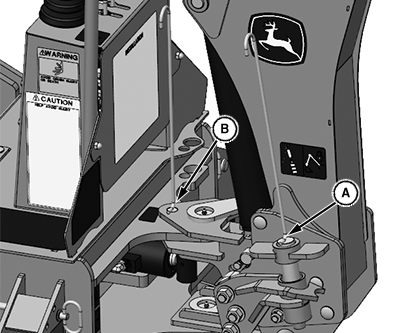

   LV25436-UN-06JUN16

   A - Boom Lock Pin

   B - Swing Lock Pin

   From the operator seat, install boom lock pin (A) and swing lock pin (B).

---

5. Exit the backhoe and stand in location between backhoe stabilizer and boom.

6.

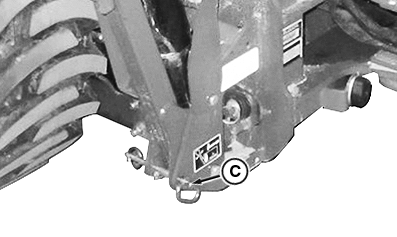

   LV25483-UN-08JUN16

   A - Transport Pins

   Fully raise the stabilizer legs to transport position as shown. Install transport pins (C) and secure with locking pins.

---

8.

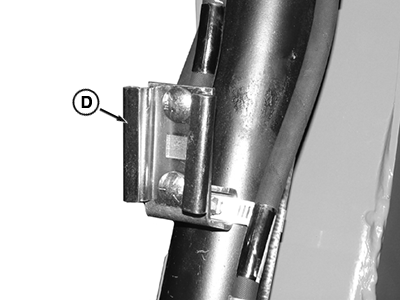

   LV25547-UN-08JUN16

   DA - Bracket

   Install Slow Moving Vehicle (SMV) sign in bracket (D) on bucket cylinder.

---
