Lubricating Mower

1.

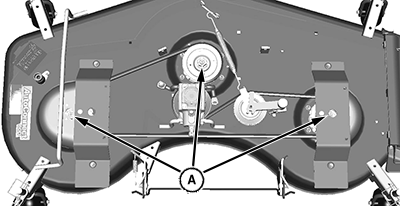

   LV24014-UN-04AUG15

   60D Mower Shown

   A - Grease Fittings on Sheaves

   Lubricate three grease fittings (A) on sheaves with recommended grease.

---




2.

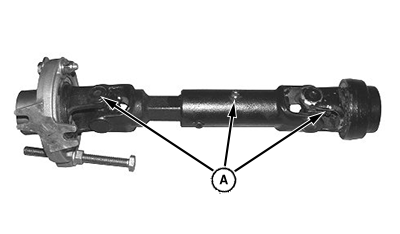

   LV24015-UN-04AUG15

   A - Grease Fittings on Mid PTO

   Lubricate three grease fittings (A) on mid PTO with recommended lubricant.

---
