Replacing Sheaves

1.

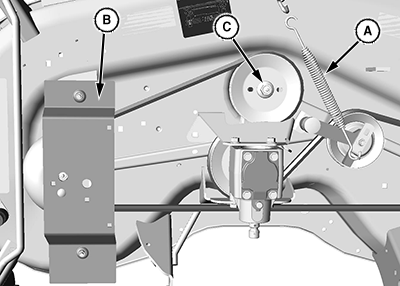

   LV24024-UN-04AUG15

   54D Mower Shown

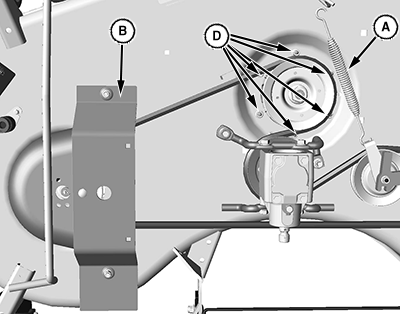

   LV24025-UN-04AUG15

   60D Mower Shown

   A - Spring

   B - Ramp

   C - Center Bolt

   D - Bolts

   Remove spring (A) to relieve belt tension.

---




2. If necessary, remove drive over ramp (B).

3. Remove bolt:

   1. 54D mower: Remove center bolt (C) on sheave to be replaced.

   2. 60D mower: Remove six bolts (D) on sheave to be replaced.

4. Replace sheave and secure with original hardware.

5. Replace ramps, if removed.
