Prepare Tractor and PTO Coupler

  1. Raise lift system fully.

  2. Remove pin from height lock.

  3. Lower lift system fully.

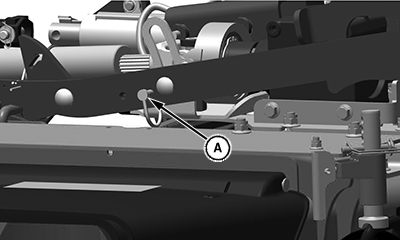

  4. Remove lock pin (A) from coupler support and make sure support drops completely.

  5. LV25042
    LV25042-UN-28APR16

    A - Lock Pin

    Place lock pin (A) in forward storage hole in lift link.

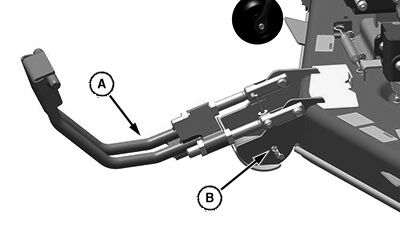

  6. LV25026
    LV25026-UN-11MAY16

    A - Front Link

    Unfold front link (A) from top of mower. Insert end of rod into top part of slot (B) in bracket.

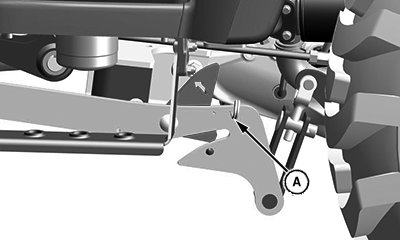

  7. LV25116
    LV25116-UN-10MAY16

    A - Cotter Pin

    Cotter pins (A) should be in the storage position and locks should be in the install/locked position.

UP00731,000012C-19-20160511
