Lubricating Mower

1.

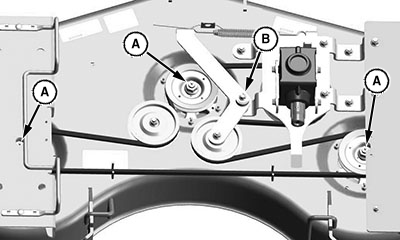

   LV25027-UN-26APR16

   60D Mower Shown

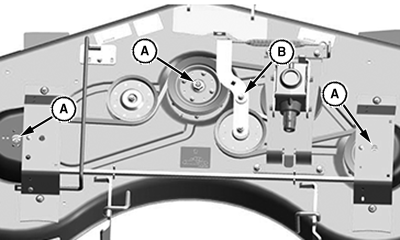

   LV25028-UN-26APR16

   72D Mower Shown

   A - Grease Fittings on Sheaves

   B - Grease Fitting on Tensioner Pulley

   Lubricate three grease fittings (A) on sheaves with recommended grease.

---




2. Lubricate grease fitting (B) on tensioner pulley with recommended grease.

3.

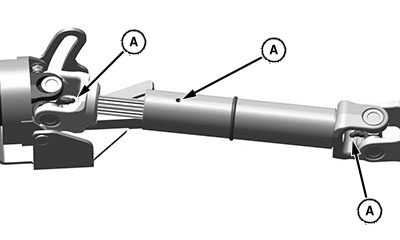

   LV25037-UN-27APR16

   A - Grease Fittings on mid PTO

   Lubricate three grease fittings (A) on mid PTO with recommended lubricant.

---
