Servicing Mower Belt

Removing Belt

1. Remove mower from machine.

2. Clean area around and under ramps.

3.

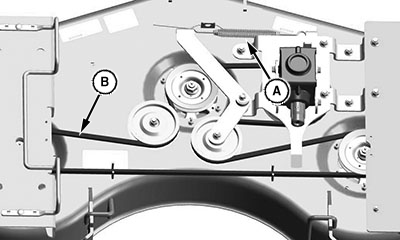

   LV25029-UN-26APR16

   A - Spring

   B - Belt

   60D Mower:

   1. Remove spring (A) to relieve belt tension.

   2. Remove belt (B) from mower.

---




4.

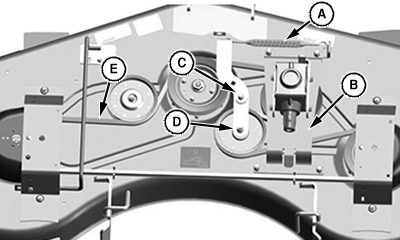

   LV25030-UN-28APR16

   A - Spring

   B - Gearbox Support

   C - Tensioner

   D - Tensioner Pulley

   E - Belt

   72D Mower:

   1. Remove spring (A) to relieve belt tension.

   2. Remove the gearbox support (B) by removing four nuts.

   3. Remove the nut, washer and tensioner (C).

   4. Remove the bolt and hardware retaining the tensioner pulley (D).

   5. Remove belt (E) from mower.

---

Installing Belt

1. Install belt around sheaves and route as shown.

2. 60D Mower: Install spring.

3. 72D Mower: Install tensioner pulley, tensioner, gearbox support, and spring..
