Replacing Sheaves

1.

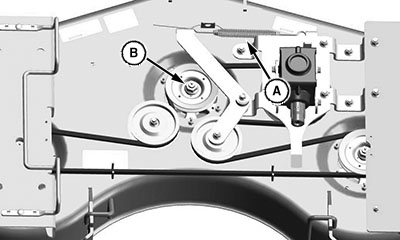

   LV25031-UN-26APR16

   60D Mower


   LV25032-UN-11MAY16

   72D Mower

   A - Spring

   B - Ramp

   C - Center Bolt

   D - Bolt

   Remove spring (A) to relieve belt tension.

---




2. If necessary, remove drive over ramp (B).

3. 60D mower: Remove center bolt (C) on sheave to be replaced.

4. 72D mower: Remove four bolts (D) on sheave to be replaced.

5. Replace sheave(s) and install hardware.
