Raising and Lowering Mower


Mower Lift System (3033R, 3038R, 3039R, 3045R, 3046R)

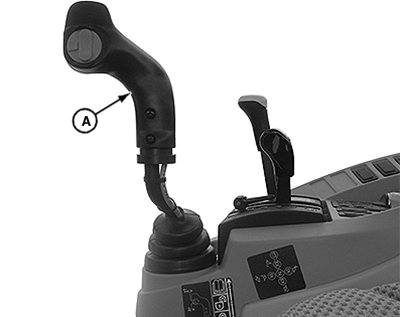

LV25105
LV25105-UN-04MAY16

3033R, 3038R, 3039R, 3045R, 3046R

A - SCV Lever

A hydraulic mower lift system operates independently of the machine rockshaft and is operated by the machine SCV lever (A). See the machine Operator’s Manual for additional operating instructions for your specific model.

To raise the mower:

  • Pull the SCV lever (A) to the left to raise the mower.

To lower the mower:

  • Push the SCV lever (A) slightly to the right to lower the mower. Do not push the lever fully to the right, to avoid engaging the Regen function of the hydraulic circuit resulting in unintended motion.

Mower Lift System (2032R, 2036R, 2038R)

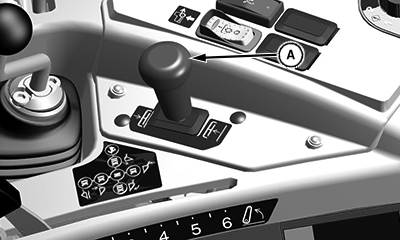

  1. LV25046
    LV25046-UN-03MAY16

    2032R, 2036R, 2038R

    A - Raise / Lower Lever

    Move the raise / lower lever (A) forward to lower the mower deck.
  2. Move the raise / lower lever (A) back to raise the mower deck.

UP00731,0000134-19-20160504
