Adjusting Height of Cut (2032R, 2036R, 2038R)

1.
   LV25048-UN-04MAY16

   2032R, 2036R, 2038R


   LV25106-UN-04MAY16

   2032R, 2036R, 2038R

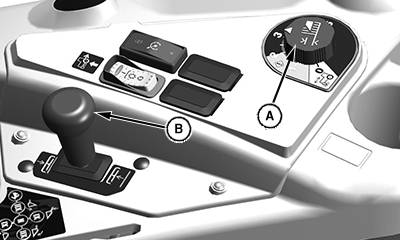

   A - Height-of-Cut Knob

   B - Raise / Lower Lever

   Adjust height-of-cut knob (A) to desired mower deck cutting height.

---

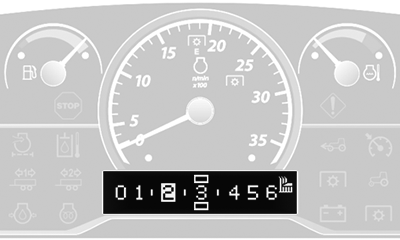

2. Height indicator flashes on instrument panel display.
3. Move raise / lower lever (B) to up or down position to raise or lower mower deck.
4. Mower deck will stop lowering at desired cutting height and indicator on instrument panel display turns solid.
