Transporting Mower on Machine


Transporting Mower on Machine (3033R, 3038R, 3039R, 3045R, 3046R)

  1. Remove height lock pin at left side of mower.
  2. Pull height link fully forward and install pin in hole that secures link in highest position.

Transporting Mower on Machine (2032R, 2036R, 2038R)

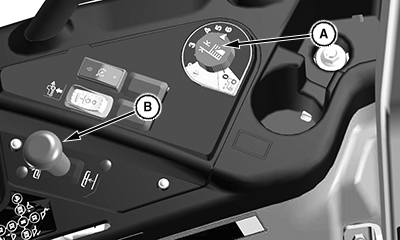

  1. LV25047
    LV25047-UN-03MAY16

    2032R, 2036R, 2038R

    LV25044
    LV25044-UN-04MAY16

    Transport Position - 2032R, 2036R, 2038R

    A - Transport Position

    B - Raise / Lower Lever

    Adjust height-of-cut knob to the transport position of 6 (A).
  2. Move the raise / lower lever (B) to the up position to raise mower deck to highest or transport position.

UP00731,0000137-19-20160510
