Dig with Dipperstick

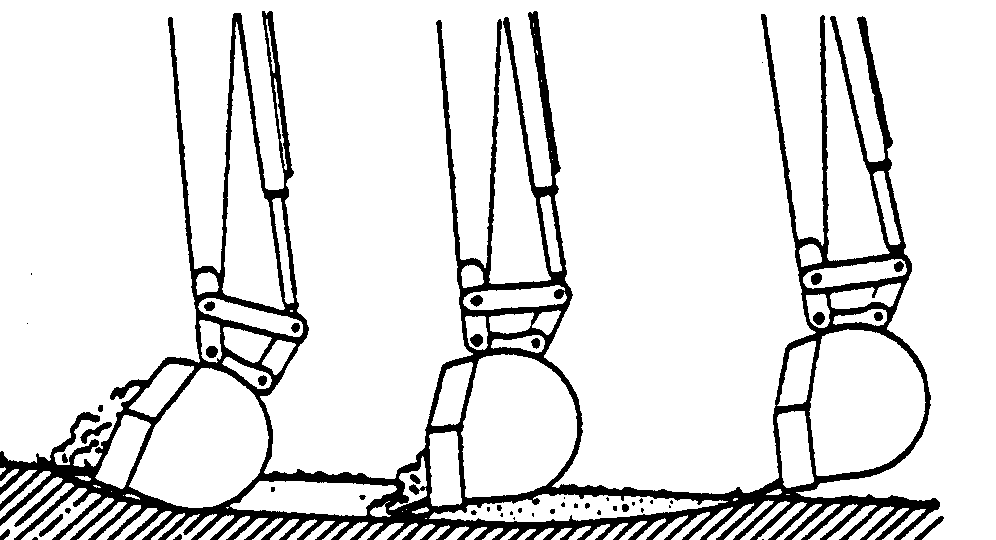

  1. LV19583
    LV19583-UN-30OCT13

    Lower bucket until teeth lie flat on ground.


  2. Retract dipperstick until the bucket is half full.

  3. Retract dipperstick as you roll the bucket back.

  4. When the bucket is full, raise, swing, and dump onto spoil pile.
