Lift With Backhoe

1.
   LV19585-UN-30OCT13


   LV19586-UN-30OCT13


   LV19587-UN-30OCT13

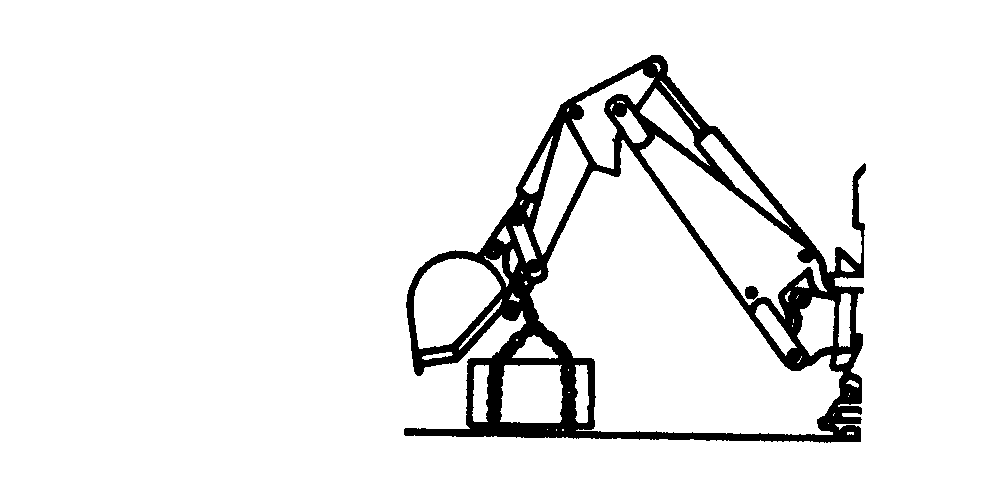

   Extend boom and dipperstick until you can fasten chain to object.

---

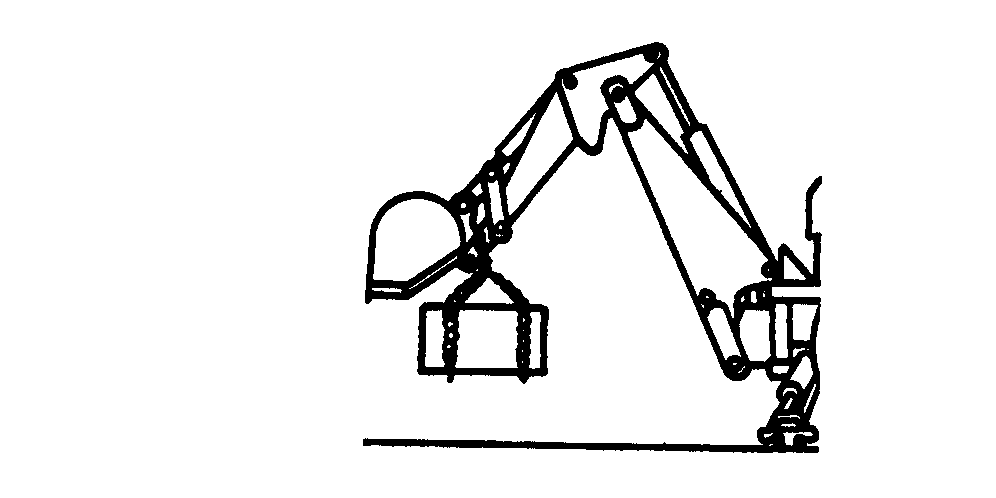

2. Fasten chain to dipperstick approximately 50 mm (2 in.) above bucket pin.

3. Fasten chain to object.

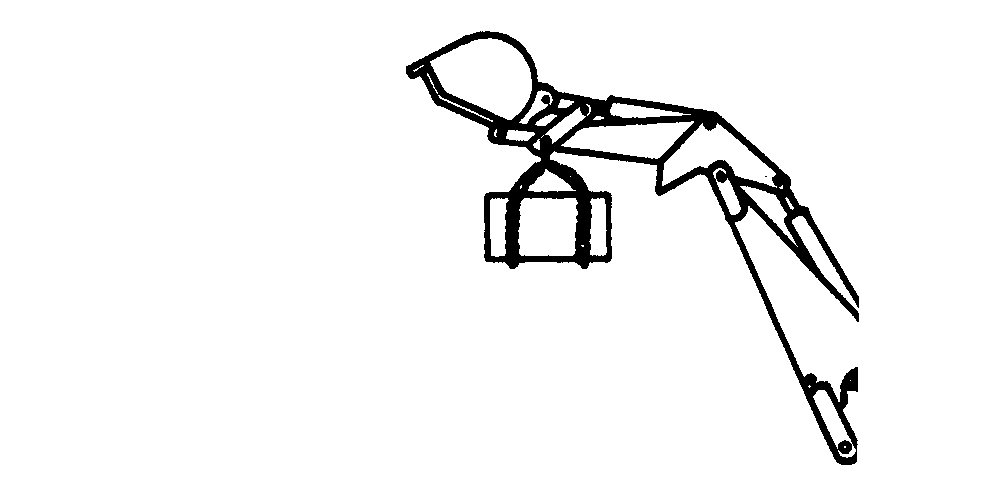

4. Raise boom to full height. Extend dipperstick cylinder if needed.

5. Retract dipperstick cylinder to lift load.
