Removing Backhoe

CAUTION:

• Keep people away from tractor while removing backhoe. Run engine just above slow idle to keep tractor movements slow and controllable.
• Stay clear of path when raising or lowering stabilizer leg.

1. Park tractor safely on a flat level surface. Engage parking brake, start engine and run at low idle.

2. Install swing lock if not already installed.

3. Lift backhoe seat up to clear tractor.

4. Without raising tractor up, lower stabilizers to touch the ground.,

5. Lower boom while keeping dipperstick vertical.

6. Place bucket flat on the ground with bucket teeth facing tractor.

7. Extend boom to slightly remove pressure from upper install pins.

8. Remove upper install pins.

9. Slowly raise boom and backhoe will lift off of the tractor.

10. Move tractor ahead about 8 inches.

11. Raise boom and install boom lock pin.

12. Raise stabilizers up until they lock.

13. Shut off tractor.

14. CAUTION:


    X9811-UN-23AUG88

    Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

    If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

    Disconnect power beyond hydraulic coupler from backhoe coupler tip.

---




15.
    LV27283-UN-11JAN17

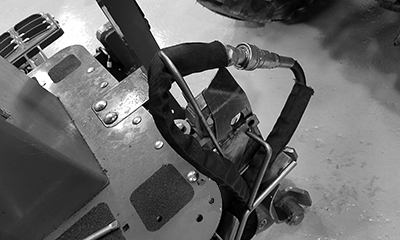

    Hose in Storage Position

    Disconnect backhoe hydraulic return line coupler from tractor coupler tip. Connect coupler to backhoe coupler tip and store lines as shown..

---




16. Connect tractor power beyond hose to tractor coupler tip.

17. Install tractor 3-point hitch assembly.
