Entering and Exiting Backhoe

Entering

1. Stop machine on a level surface, not on slope.

2. Disengage PTO and stop attachments.

3. Lower front loader to the ground.

4. Lock park brake.

5.

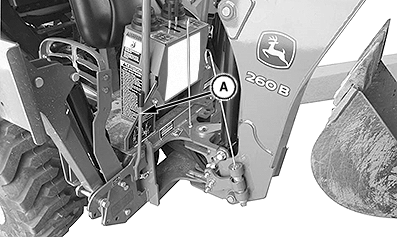

   LV27216-UN-11JAN17

   Leave tractor running at desired engine speed. Pull the stabilizer lock (A) to unlock the stabilizers and lower them to the ground.

---




6.

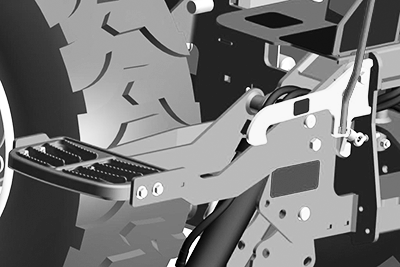

   LV27206-UN-05JAN17

   Using step, enter the backhoe from the right side (left side of tractor), using handrail near controls and on ROPS.

---

Exiting

1. Fully raise and center the boom.

2. Fully retract the dipperstick.

3. Curl the bucket back into dipperstick.

4.
   LV27205-UN-06JAN17

   A - Boom Lock Pin

   B - Swing Lock Pin

   Install boom lock pin (A) and swing lock pin (B).

---




5. Exit the backhoe from the right side.

6. Push stabilizer control levers back to raise stabilizer legs until they are in the locked position.

7. Verify that the stabilizers are locked by trying to lower the stabilizers. If they do not lower, they are locked.

8. Flip backhoe seat up for tractor operation if needed.
