Removing Boom And Swing Lock

1.

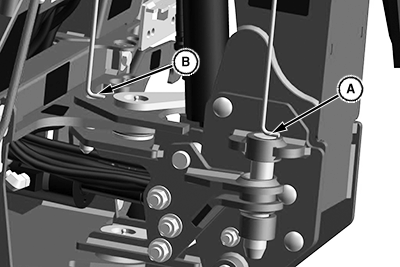

   LV27205-UN-06JAN17

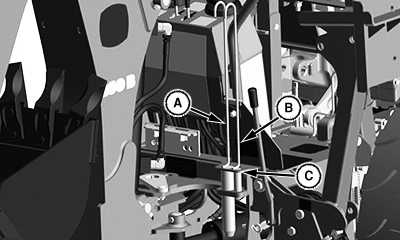

   LV27207-UN-06JAN17

   A - Boom Lock Pin

   B - Swing Lock Pin

   C - Pins in Storage Location

   From operator seat, remove boom lock (A) and swing lock (B).

---

2. Store pins in storage location (C).
