Transporting Backhoe

1. Fully raise and center the boom.
2. Fully retract the dipperstick.
3. Curl the bucket back into dipperstick.

4.
   LV27205-UN-06JAN17

   A - Boom Lock Pin

   B - Swing Lock Pin

   From the operator seat, install boom lock pin (A) and swing lock pin (B).

---

5.

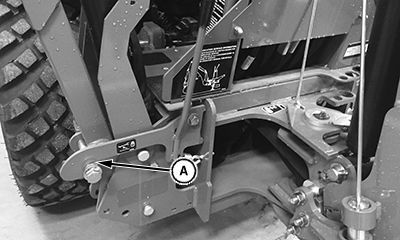

   LV27203-UN-05JAN17

   A - Lock

   Fully raise the stabilizer legs to lock (A) into the transport position as shown.

---

7.

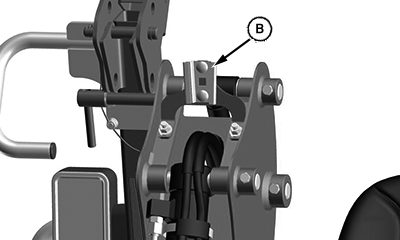

   LV27208-UN-06JAN17

   B - Bracket

   Install Slow Moving Vehicle (SMV) sign in bracket (B) on bucket.

---
