Backhoe Specifications

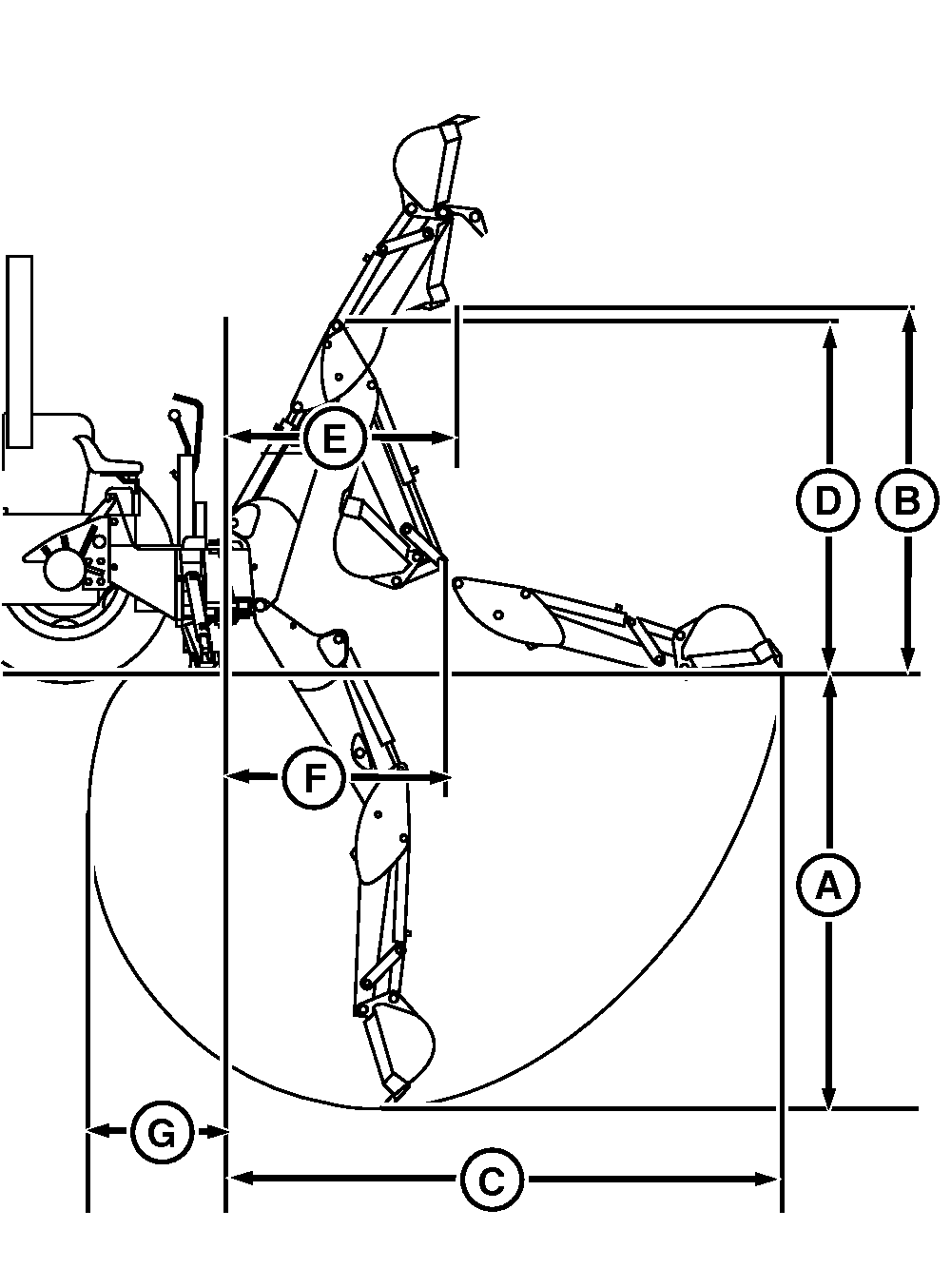

LV25388-UN-18MAY16

A - Digging Depth

B - Loading Height

C - Reach from Center Line of Swing Pivot

D - Transport Height

E - Loading Reach

F - Transport Overhang

G - Undercut

NOTE: Dimensions are given for backhoe with boom pivot pin 30 cm (12 in.) above ground.

Item	Measurement	Specification
Backhoe
A—Digging Depth	Depth	1890 mm (75 in)
B—Loading (Bucket at 60°)	Height	1524 mm (60 in)
C—Reach from Center Line of Swing Pivot	Distance	2642 mm (104 in)
D—Transport Height	Height	1676 mm (66 in)
E—Loading Reach (Bucket at 60°)	Distance	840 mm (33 in)
F—Transport Overhang	Length	940 mm (37 in)
G—Undercut	Length	43 cm (17 in.)
Bucket	Rotation	180°
Swing Arc	Angle	150°
Hydraulic Stabilizer Spread (Raised)	Width	approx. 1473 mm (58 in)
Hydraulic Stabilizer Spread (Lowered)	Width	approx. 1880 mm (74 in)
Boom1	Lift	129 kg. (285 lb)
SAE Dipperstick Digging	Force	5280 N (1187 lbf)
SAE Bucket Digging	Force	9057 N (2036 lbf)

Buckets

Item	Measurement	Specification
20 cm (8 in.) Bucket
SAE Struck	Capacity	0.011 m3 (0.42 ft3)
Heaped	Capacity	0.013 m3 (0.46 ft3)
30 cm (12 in.) Bucket
SAE Struck	Capacity	0.019 m3 (0.66 ft3)
Heaped	Capacity	0.022 m3 (.76 ft3)
41 cm (16 in.) Bucket
SAE Struck	Capacity	0.025 m3 (0.90 ft3)
Heaped	Capacity	0.030 m3 (1.06 ft3)

Recommended Lubricants

• Gear Oil
  • John Deere Low Viscosity Hy-Gard®
• Grease
  • John Deere Moly High Temperature EP Grease
  • John Deere High Temperature Grease
  • John Deere Grease Gard™

NOTE: Specifications and design are subject to change without notice.
