Dig Position

CAUTION: Avoid serious injury or death: Check for buried electric cables or gas pipes before you dig.

IMPORTANT: Do not raise the tractor with the backhoe stabilizers. The stabilizers are not outriggers, and will not hold the tractor off the ground. Do not let backhoe bucket contact stabilizers.

LV19580
LV19580-UN-30OCT13

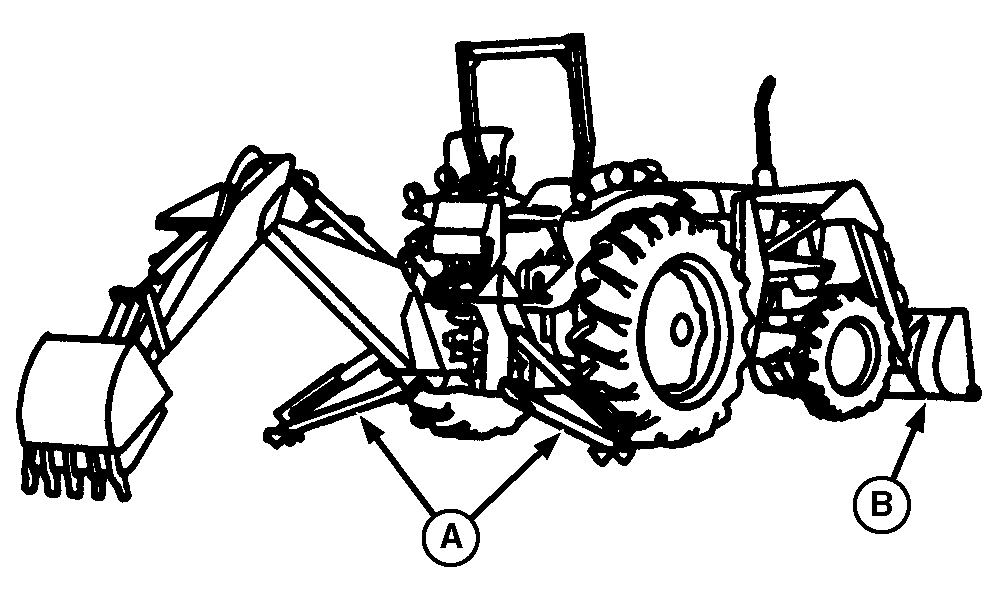

A - Stabilizers

B - Loader Bucket

Lower backhoe stabilizers (A) and loader bucket (B) to ground.

UP00731,00003BE-19-20190313
