Replacing Bucket Teeth

1. CAUTION: Avoid injury! Bucket teeth are heavy. When you remove them, they may pinch fingers. Wear gloves and safety glasses when you remove teeth.

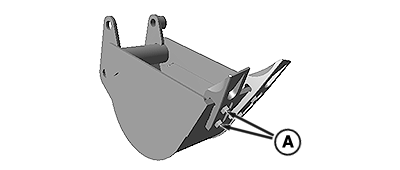

   LV25383-UN-17MAY16

   A - Lock nuts

   Remove lock nuts (A) and cap screws securing tooth to bucket.

---




2. Install new tooth. Tighten hardware to 70 N·m (52 lb·ft).
