Operate Controls

CAUTION: Avoid injury! Do not use control levers to help you mount or dismount the backhoe. Always use handrail. Do not operate controls while standing on the ground. Backhoe movements could strike and/or crush you against frame.

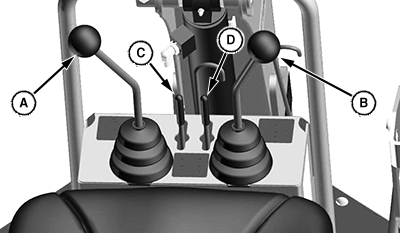

LV25420-UN-24MAY16

A - Boom and Swing Control Lever

B - Dipperstick and Bucket Control Lever

C - Left Stabilizer Control Lever

D - Right Stabilizer Control Lever

Boom and Swing Control Lever (A):

• To raise boom: pull control lever to back.
• To lower boom: push lever forward.
• To swing boom to left: push lever to left.
• To swing boom to right: push lever to right.
• Boom float position: Push control to second forward position.

Dipperstick and Bucket Control Lever (B):

• To retract dipperstick: pull control lever to back.
• To extend dipperstick: push control lever forward.
• To curl bucket in: push lever to left.
• To roll bucket out: push lever to right.

Dipperstick and Bucket Control Lever with Backhoe Thumb Enabled (If Equipped):

• To retract dipperstick: pull control lever to back.
• To extend dipperstick: push control lever forward.
• To curl bucket and backhoe thumb in: push lever to left.
• To roll bucket and backhoe thumb out: push lever to right.

Stabilizer Control Levers, Left (C) and Right (D):

• To raise stabilizer: pull control lever back.
• To lower stabilizer: push control lever forward.
