Control Labels

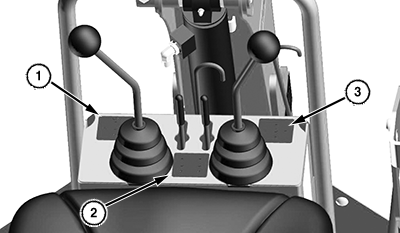

LV27642-UN-13FEB17

1 - Boom and swing label

2 - Stabilizer label

3 - Dipperstick and bucket label

1.
   LV27639-UN-13FEB17

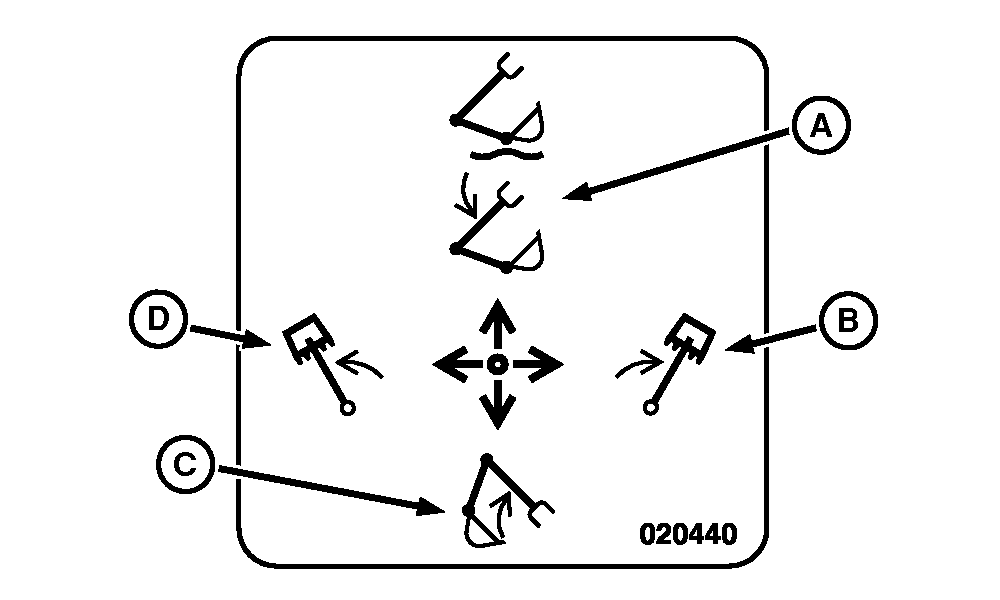

   Boom and Swing Label

   Boom and swing label::

   1. Boom down and float position

   2. Boom swing right

   3. Boom swing left.

   4. Boom up

---




2.
   LV27640-UN-13FEB17

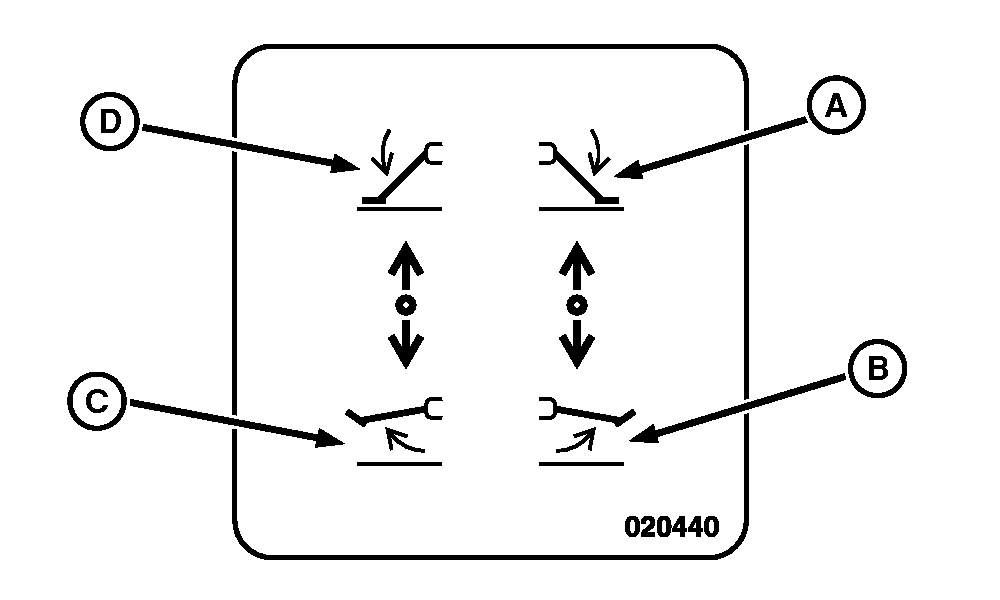

   Stabilizer Label

   Stabilizer label:

   1. Right stabilizer down

   2. Right stabilizer up

   3. Left stabilizer up

   4. Left stabilizer down

---




3.
   LV27641-UN-13FEB17

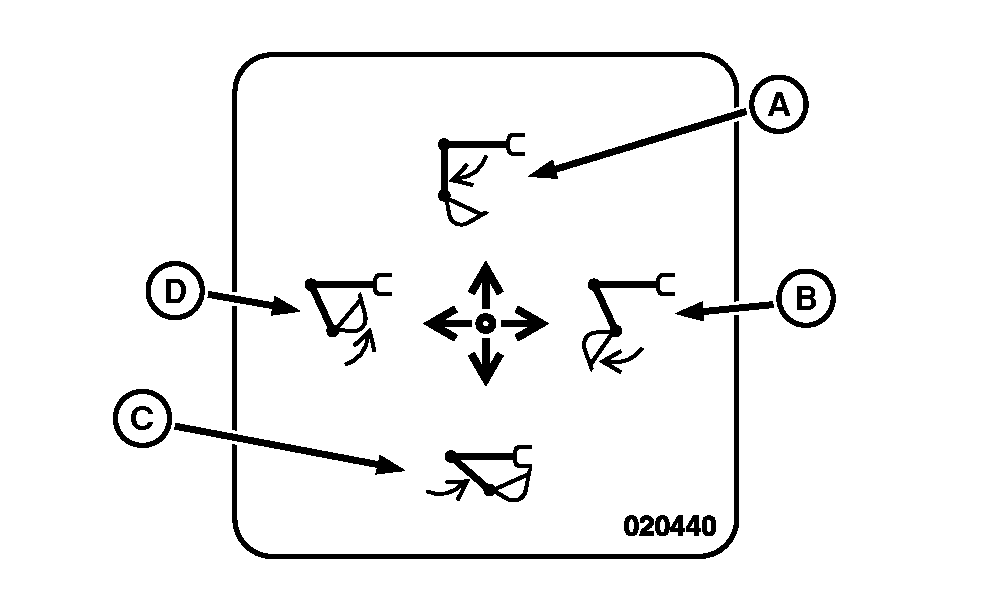

   Dipperstick and Bucket Label

   Dipperstick and bucket label:

   1. Dipperstick out

   2. Bucket dump

   3. Dipperstick in

   4. Bucket dig and curl position

---




4.
   LV30539-UN-14MAR19

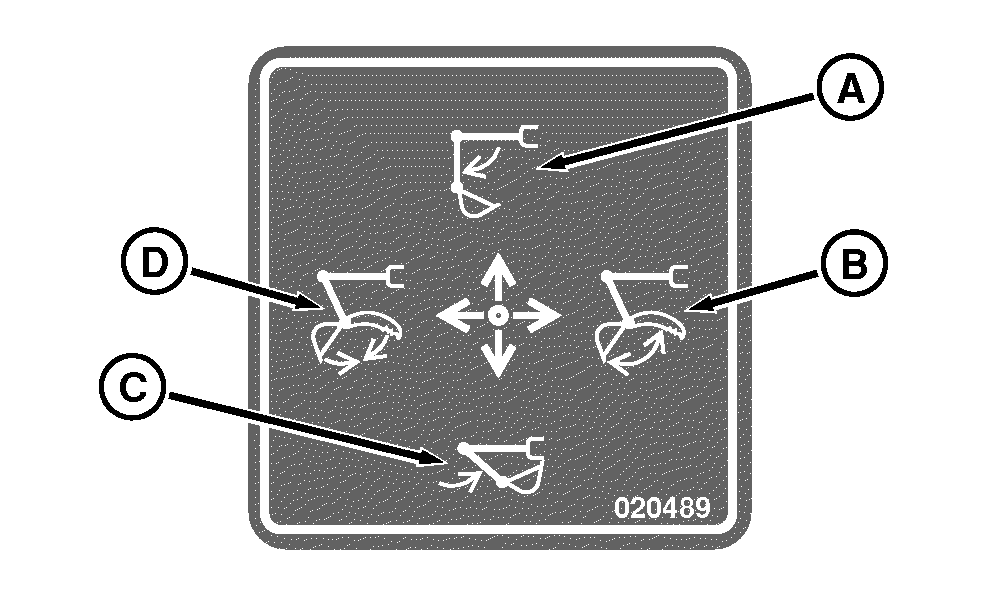

   Dipperstick and Bucket Label--Backhoe Thumb Installed (If Equipped)

   Dipperstick and bucket label with backhoe thumb installed, if equipped:

   1. Dipperstick out

   2. Bucket and backhoe thumb dump

   3. Dipperstick in

   4. Bucket and backhoe thumb dig and curl position

---
