Install Driveshaft on Snowblower

1.

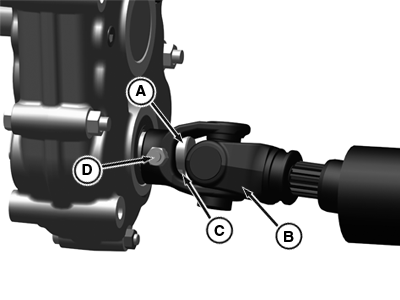

   LVP11494-UN-08JAN21

   .

   A - Driveshaft Coupler

   B - Gear Case Shaft

   C - Shaft Key (5/16 x 2 in)

   D - Cap Screw and Lock Nut

   Install shaft key (C), align holes and key slot of the driveshaft coupler (A) with the gear case shaft (B), then slide the driveshaft on.

---




2. With the driveshaft on the gear case shaft, line up the bolt holes and secure using cap screw and lock nut (D).
