Install Chute

1.
   LVP11369-UN-26MAR21

   Apply grease on the bottom and inside flange of the discharge chute.

---




2. Place discharge chute over auger opening on the auger housing.

3.
   LV23148-UN-23SEP14

   A - Clip (4 used)

   B - Cap Screw (5/16 x 3/4 in), Lock Washer, and Nut (8 used)

   Install clips (A) with cap screws, lock washers, and nuts (B).

---




4. Turn chute so spout faces left.

5.

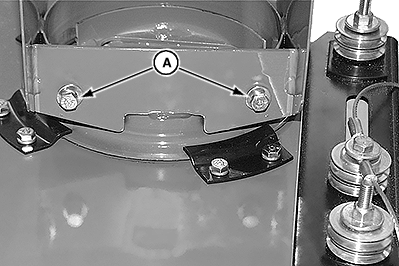

   LV23149-UN-23SEP14

   A - Cap Screw (5/16 x 3/4 in) and Washer (M9 x 28 mm) (2 used)

   Install cap screws and washers (A) in chute threaded holes, and tighten by two or three turns.

---
