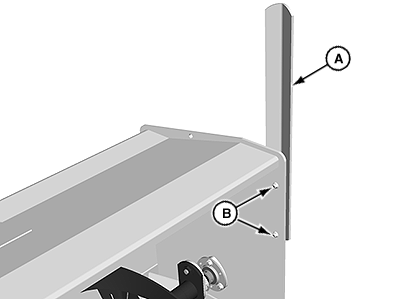

Install Drift Blades

LV23155
LV23155-UN-23SEP14

A - Drift Blade

B - Bolt (M6 x 30 mm) and Lock Nut (M6) (4 used)

Fasten drift blade (A) to each side of the auger housing using bolts and lock nuts (B).

AL61114,00006F9-19-20210409
