Install Implements on Front Hitch with A-Frame

  1. LV23157

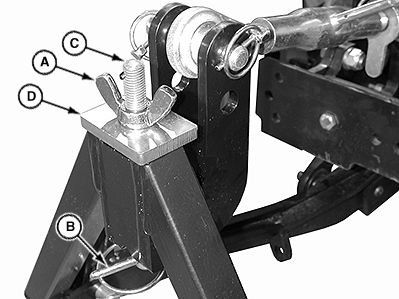

    LV23157-UN-23SEP14

    A - Wing Nut

    B - Quick-Lock Pin

    C - Rod

    D - Plate

    Loosen wing nut (A) and remove quick-lock pin (B).


  2. Remove the retainer rod (C) with wing nut and retainer plate (D) from A-frame.

  3. LV23158
    LV23158-UN-23SEP14

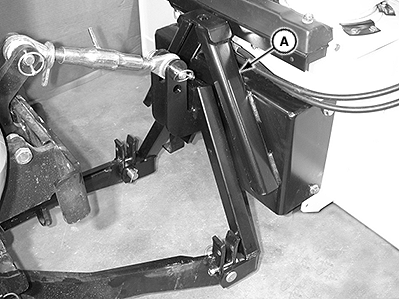

    A - Mount

    Drive tractor forward slowly, and align the A-frame with mount (A) on implement.


  4. Raise the hitch to install the A-frame on mount.

  5. LV23159

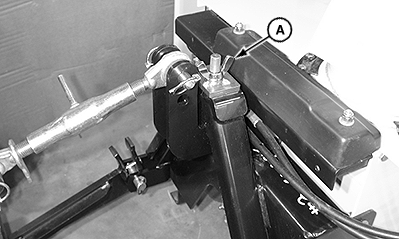

    LV23159-UN-23SEP14

    A - Wing Nut

    Install the retainer rod with wing nut and retainer plate through mount and A-frame. Position wing nut (A) as required to install quick-lock pin in the retainer rod.


  6. Tighten wing nut to secure implement to A-frame.

  7. Install cotter pin in the small hole at the end of the retainer rod.
