Set Parking Stand

  1. Park tractor safely.

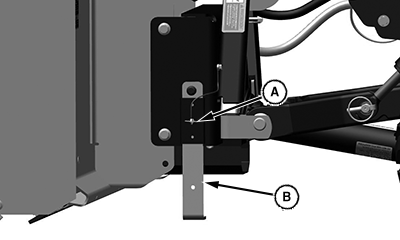

  2. LV24977
    LV24977-UN-13APR16

    A - Locking Pin

    B - Parking Stand

    Move the parking stand (B) to the down position before removing the snowblower.

    1. Remove the locking pin (A) from the parking stand (B).

    2. Slide parking stand (B) down.

    3. Install the locking pin (A) to lock the parking stand (B) in position.

DN39857,000036B-19-20210407
