Disconnect Hydraulic Hoses

1. Park tractor safely.

2. CAUTION:


   X9811-UN-23AUG88

   Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

   If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene can result. Doctors unfamiliar with this type of injury must reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

   Move the tractor dual SCV lever rearward-to-forward and side-to-side several times to relieve the hydraulic pressure.

---




3. Disconnect hydraulic hoses:

   1.

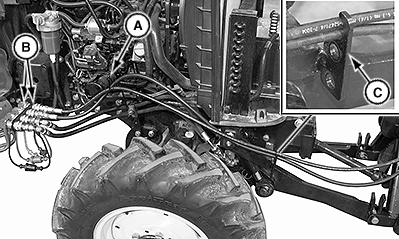

      LV23160-UN-23SEP14

      Tractors with Mid-Mount Couplers

      A - Hose Support

      B - Couplers

      C - Bracket

      For tractors with mid-mount couplers: Disconnect hydraulic hoses from SCV couplers (B) and remove hoses from front hitch hose support (A) and front hitch support bracket (C).

   ---




   2.

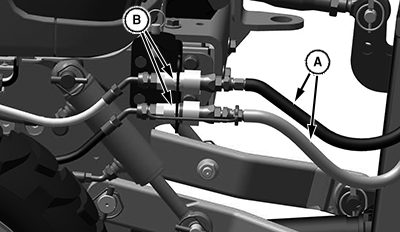

      LV24144-UN-12OCT15

      Tractors with Front-Mount Couplers

      A - Hydraulic Hose

      B - Front Couplers

      For tractors with front-mount couplers: Disconnect hydraulic hoses (A) from front SCV couplers (B).

4. Install dust covers on hose ends, and secure hoses to snowblower.

5. Install SCV coupler dust plugs in couplers.
