Remove Implements from Front Hitch with A-frame

  1. Park tractor safely.

  2. Lower snowblower onto the level surface and set parking stand.

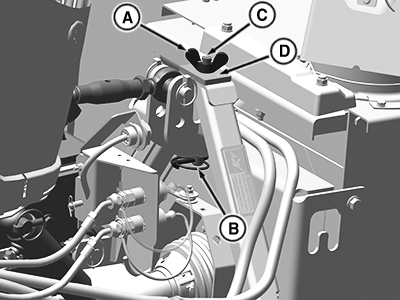

  3. LVP11628
    LVP11628-UN-06APR21

    A - Wing Nut

    B - Quick-Lock Pin

    C - Rod

    D - Plate

    Loosen wing nut (A) and remove quick-lock pin (B).


  4. Remove the retainer rod (C) with wing nut and retainer plate (D).

  5. Lower the hitch to remove the A-frame from the implement mount, and slowly back tractor away from implement.

  6. Install the retainer rod with wing nut and retainer plate on the A-frame with quick-lock pin.
