Adjust Spout - Electric

1. NOTE: Angle of the spout can be changed at any time during the snowblower operation.


   LVP11492-UN-08JAN21


   LVP11630-UN-06APR21

   A - Spout

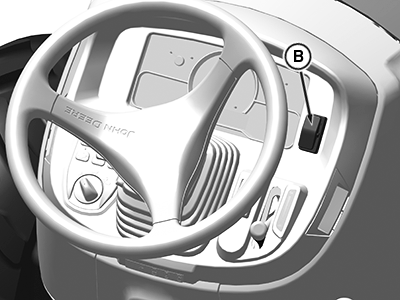

   B - Rocker Switch

   Operate the rocker switch (B) to change the angle of the spout (A).

---




2. Push top of the rocker switch (B) to raise and bottom to lower the spout.
