Adjust Skid Shoes

1. Raise the snowblower.

2. Put blocks under scraper blade on both sides of snowblower.

3. Lock park brake.

4. Stop the engine and remove key.

5. Lower snowblower onto blocks.

6.

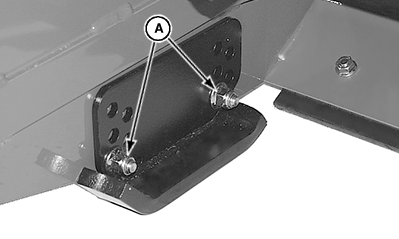

   LV23179-UN-23SEP14

   A - Nuts

   Remove nuts (A) and bolts from each skid shoe.

---




7. NOTE: Both skid shoes must be installed in the same position.

   Install bolts and nuts in holes to raise or lower the scraper blade. Each hole changes the blade height by 13 mm (1/2 in).

8. Replace the old skid shoe with the new skid shoe if necessary.
