Check Snowblower Gear Case Oil Level

  1. Park tractor safely. (See Parking Safely in Safety Section of the tractor operator’s manual.)

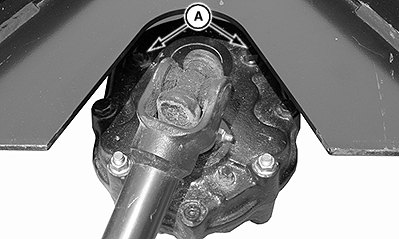

  2. LV23166
    LV23166-UN-23SEP14

    A - Check Plugs

    Remove one of the check plugs (A).


  3. Ensure that oil is level with check plug hole.

  4. Add recommended transmission oil as needed.

  5. Install and tighten the plug.

DN39857,0000377-19-20210412
