Lubricate Gear Case Driveshaft

  1. Park tractor safely.

  2. IMPORTANT: To avoid damaging the seal, do not over-lubricate.

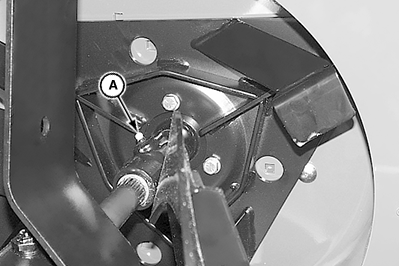

    LV23167
    LV23167-UN-23SEP14

    A - Fitting

    Lubricate fitting (A) with one or two shots of grease.



DN39857,0000378-19-20210412
