Lubricate Auger Shaft

  1. Park machine safely.

  2. LV23168
    LV23168-UN-23SEP14

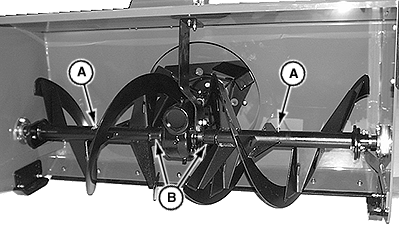

    A - Fittings

    B - Auger Shafts

    Lubricate fittings (A) with grease until it just comes out of auger shafts (B).

DN39857,000037A-19-20210412
