Lubricate Driveshaft

  1. Park machine safely.

  2. Lubricate all U-joint fittings with one or two shots of grease.

  3. LV23170
    LV23170-UN-23SEP14

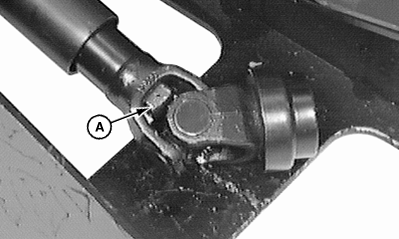

    A - Inner Shaft

    Lubricate the inner shaft (A) with grease. Extend and compress driveshaft several times to distribute grease.

DN39857,000037B-19-20210412
